Clamp-Type Expansion Joint

CLAMP-TYPE EXPANSION JOINT

A lightweight and economical rubber expansion joint with beaded ends secured by clamps, providing flexibility and vibration absorption in low- to medium-pressure systems.

Enquire Now

Clamp-Type

expansion joint

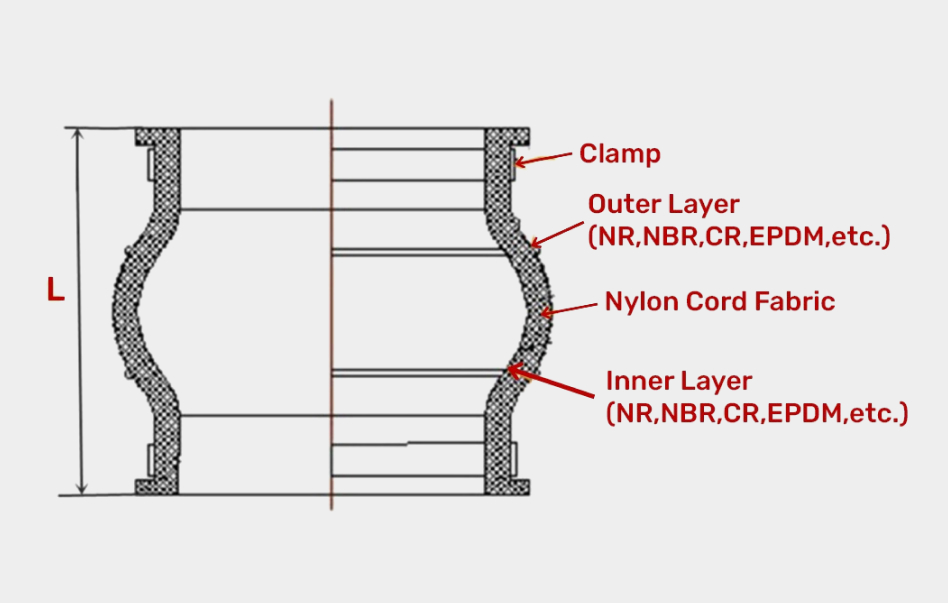

The Rubber Clamp-Type Expansion Joint is constructed with molded elastomeric beads on both ends, which are clamped directly to the pipe or equipment nozzles using galvanized or stainless-steel clamps. This design eliminates the need for flanges, making installation simple and cost-effective. It provides axial, lateral, and angular flexibility while damping vibration and noise. Clamp-type joints are ideal for small- to medium-diameter pipelines, particularly where frequent installation or replacement is required.

  • Size Range (DN)

    DN25 – DN600 (larger on request)

  • Materials (Elastomer)

    Natural Rubber, EPDM, Nitrile, Neoprene

  • Reinforcement

    Nylon tire cord with steel wire

  • Movements

    Axial, Lateral & Angular

  • Pressure Rating

    PN6 – PN10 (higher on request)

  • Temperature Range

    –20°C to +100°C (up to +120°C with special elastomers)

Clamp-Type

expansion joint

The Rubber Clamp-Type Expansion Joint is constructed with molded elastomeric beads on both ends, which are clamped directly to the pipe or equipment nozzles using galvanized or stainless-steel clamps. This design eliminates the need for flanges, making installation simple and cost-effective. It provides axial, lateral, and angular flexibility while damping vibration and noise. Clamp-type joints are ideal for small- to medium-diameter pipelines, particularly where frequent installation or replacement is required.

Explore Now

  • Size Range (DN)

    DN25 – DN600 (larger on request)

  • Materials (Elastomer)

    Natural Rubber, EPDM, Nitrile, Neoprene

  • Reinforcement

    Nylon tire cord with steel wire

  • Movements

    Axial, Lateral & Angular

  • Pressure Rating

    PN6 – PN10 (higher on request)

  • Temperature Range

    –20°C to +100°C (up to +120°C with special elastomers)

Typical use case: Widely used in pump and HVAC connections where a quick-install, economical joint is required, and where vibration and noise must be reduced.

Other applications:

  • Chilled water and cooling systems
  • Light industrial and utility piping
  • Desalination plant auxiliary lines
  • Marine and shipboard equipment connections
  • Cost-effective solution with simple clamp installation
  • No flanges required → reduces weight and installation time
  • Provides vibration and noise isolation for pumps and equipment
  • Compact design suited for tight spaces
  • Maintenance-free and easy to replace
  • Available in multiple elastomer grades for varied services
Clamp
Clamps

galvanized or stainless steel, sized to match bead ends

Vacuum Support Rings

optional for negative pressure conditions

External Covers

for UV and ozone resistance in outdoor service
